Why Forged Parts Fail to Match Engineering Drawings
In forging projects, few things are more frustrating than receiving forged parts that do not match the engineering drawings. Dimensional problems can slow production, increase machining costs, and create unexpected rework during assembly or inspection.
In many cases, these issues do not begin during final machining alone. Problems such as insufficient machining allowance, forging tolerance variation, heat treatment distortion, or unclear GD&T interpretation often start much earlier during RFQ review and process planning. This is especially common in large forged rings, shafts, flanges, and other heavy forged components.
This article explains the common reasons forged parts fail to match drawings and how better technical review can improve dimensional accuracy and production stability.
Why Drawing Problems Start Before Production
Many drawing-related problems begin long before forging production starts. In many cases, suppliers review drawings mainly for quotation purposes instead of performing a complete manufacturability review.
Critical factors are sometimes overlooked during the RFQ stage, including:
- Forging tolerances
- Machining allowance
- Datum strategy
- Heat treatment distortion
- Tooling feasibility
- Inspection requirements
If these issues are not clarified early, dimensional deviations often appear later during machining or inspection.
Experienced forging suppliers usually evaluate both forging and machining processes together before approving production.
Common Drawing Errors in Forged Parts
Drawing-related problems are common in forged component manufacturing, especially for large forged rings, shafts, flanges, and structural parts.
Typical issues include:
- Insufficient machining allowance
- Unclear datum references
- Tight tolerances in forged areas
- Incorrect GD&T interpretation
- Inconsistent surface finish requirements
- Missing heat treatment notes
In some projects, the drawing itself may be technically correct but still difficult to manufacture consistently in mass production. Large forged parts are more sensitive to forging deformation and heat treatment movement, which makes dimensional control more challenging than for smaller machined components.
How Forging Tolerances Affect Machining
Forging tolerances directly affect the final machining process.
Many buyers assume the forged shape already matches the final part dimensions. In reality, forged parts usually require additional machining stock to ensure dimensional accuracy after machining.
Important factors include:
- Material shrinkage after forging
- Draft angles
- Surface irregularities
- Forging deformation
- Clamping allowance
If machining allowance is too small, the final machined dimensions may not meet the engineering drawing.
If the allowance is too large, machining costs and cycle time increase significantly.
Proper coordination between forging and CNC machining is critical for stable production quality.
How Heat Treatment Changes Part Dimensions
Heat treatment is one of the most common reasons forged parts move out of tolerance. Even when machining dimensions are correct before heat treatment, parts can still shift during quenching, tempering, or normalizing.
Common problems during heat treatment include:
- Residual stress after quenching
- Warping on large surfaces
- Roundness variation in forged rings
- Straightness changes in forged shafts
- Surface hardness variation
- Dimensional movement after cooling

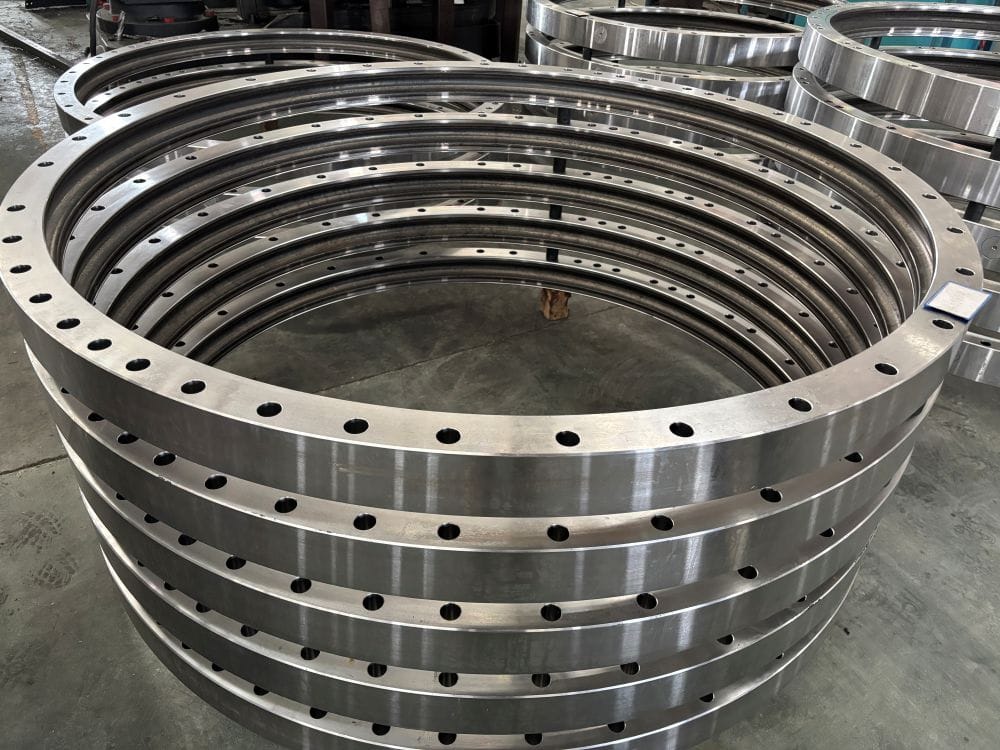

Large forged rings, shafts, flanges, and structural components are especially sensitive to heat treatment distortion. In many projects, dimensional movement is underestimated during process planning, causing some parts to fail final inspection after heat treatment.
To reduce this risk, critical dimensions are often finish-machined after heat treatment. Proper coordination between heat treatment and machining is important for maintaining dimensional stability in forged components.
Why Suppliers Raise Issues After PO Approval
Many OEM buyers become frustrated when suppliers raise technical or manufacturability issues after production has already started. In many cases, these problems begin during quotation review or early process planning.
Common causes include:
- Limited drawing review during quotation
- Lack of manufacturability analysis
- Unrealistic tolerance requirements
- Insufficient tooling evaluation
- Incomplete engineering communication
Some suppliers focus mainly on pricing and delivery time during the RFQ stage, while technical evaluation is delayed until after PO approval. As a result, problems may only appear later during forging, machining, or inspection.
GD&T Problems in Forging Manufacturing
GD&T interpretation problems are common in forging manufacturing, especially for large forged rings, shafts, and flanges where dimensional control is more difficult.
Many inspection disagreements are related to:
- Datum selection
- Position tolerance
- Flatness
- Concentricity
- Runout requirements
In some OEM projects, suppliers and customers use different datum references or inspection strategies. As a result, measurement results may differ even when the forged part itself is acceptable. Clear inspection standards and early technical communication help reduce these problems.

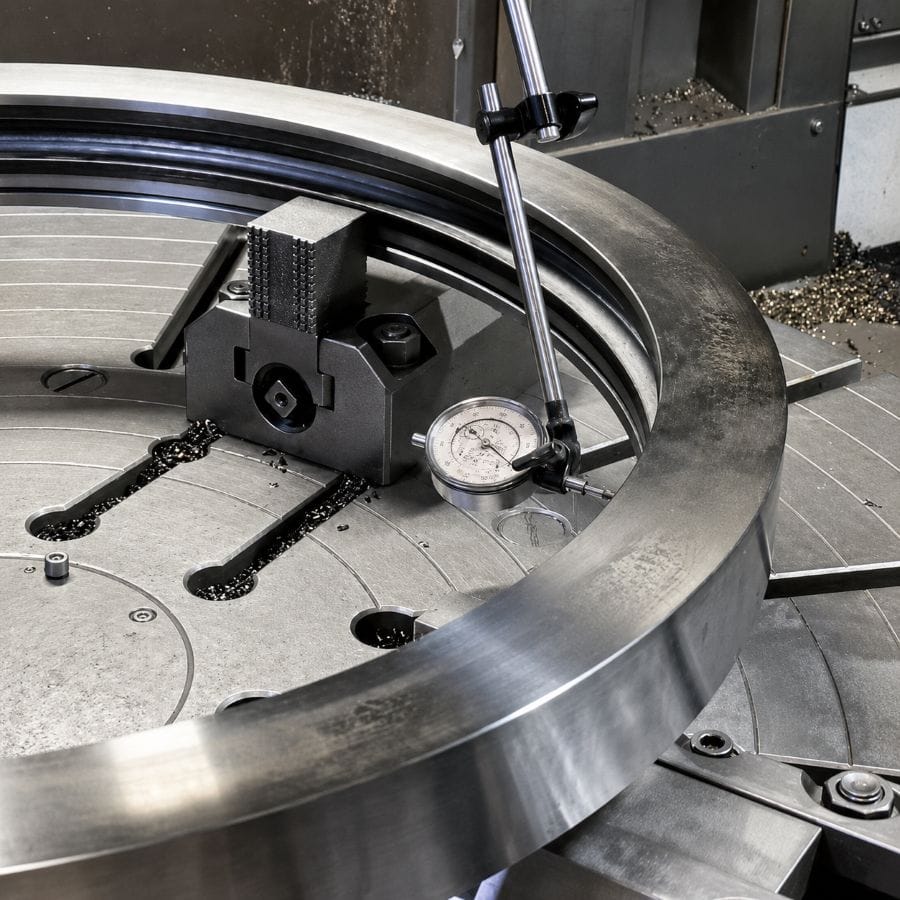

Why Inspection Results Do Not Match
It is common for suppliers and OEM customers to receive different inspection results for the same forged component.
Common causes include:
- Different measurement fixtures
- Different datum references
- Temperature variation
- Different CMM programs
- Different sampling methods
In some projects, suppliers inspect the forged part before heat treatment, while OEM customers measure the final machined component afterward. This can lead to different dimensional results even for the same part.
Without clear inspection standards and agreed measurement methods, dimensional disputes can easily happen during production and final acceptance.
How OEM Buyers Reduce Manufacturing Risks
OEM buyers can significantly reduce drawing-related risks by improving technical review procedures before production approval.
Recommended practices include:
- Requesting manufacturability reviews before PO release
- Confirming critical dimensions early
- Reviewing machining allowance with suppliers
- Clarifying heat treatment requirements
- Aligning inspection standards
- Confirming GD&T interpretation before tooling production
Early collaboration between engineering, quality, and manufacturing teams usually reduces later production problems.
Suppliers with integrated forging, machining, and inspection capabilities are often better prepared to manage dimensional risks throughout production.
Best Practices Before Production Approval
Before production starts, forging suppliers should complete several important technical evaluations.
Best practices typically include:
- Full drawing review
- Material verification
- Forging process evaluation
- Tooling feasibility analysis
- Heat treatment planning
- Machining route confirmation
- Inspection planning
- Traceability preparation
A structured pre-production review process helps reduce dimensional deviation, improve production stability, and avoid costly rework later.
Why Early Technical Review Matters
Many dimensional problems are not caused by a single machining mistake. In many forging projects, issues begin much earlier during drawing review, tooling evaluation, heat treatment planning, or inspection setup.
Forged rings, shafts, flanges, and other heavy forged components involve multiple manufacturing stages. A small issue in machining allowance, datum selection, or heat treatment planning can later affect final dimensional inspection results.
For OEM buyers, early technical review helps identify manufacturability and dimensional risks before production starts. Clear communication between suppliers, engineering teams, and inspection departments is often the best way to avoid costly rework and production delays later.
Conclusion
Forged parts may fail to match drawings because of forging tolerances, machining allowance, heat treatment distortion, GD&T interpretation, or inspection differences. In many OEM projects, these problems often begin during early process planning rather than final machining alone.
For forged rings, shafts, flanges, and other heavy forged components, early technical review is important for reducing dimensional risks and avoiding costly rework later.
