Why GD&T Matters in Forged and Machined Parts
GD&T inspection is increasingly important in forged and machined parts because dimensional accuracy alone cannot guarantee reliable assembly or stable performance. Even when a part meets machining tolerances, poor geometric tolerance control may still cause vibration, sealing issues, or assembly misalignment.
In many OEM and heavy equipment applications, features such as flatness, runout, concentricity, and position tolerance directly affect machining consistency and equipment reliability.
This article explains why GD&T matters in OEM manufacturing, common geometric tolerance problems in forged components, and how forging, CNC machining, and inspection processes influence final dimensional stability.
What Is GD&T in Forged and Machined Parts?
GD&T stands for Geometric Dimensioning and Tolerancing. Unlike traditional dimensional tolerances, GD&T controls the geometric relationship between different features on a part.
Common GD&T features include:
- Flatness
- Runout
- Concentricity
- Position tolerance
In forged and machined parts, these tolerances directly affect assembly accuracy, rotating stability, sealing performance, and equipment reliability.
For example, a flange may have the correct hole diameter but still create assembly problems if the hole position is inaccurate. A shaft may also generate vibration because of excessive runout or poor concentricity.
Why GD&T Is Important in OEM Manufacturing
In heavy equipment and OEM manufacturing, even small geometric deviations may affect assembly and long-term performance.
Common examples include:
- Poor flatness
→ may cause sealing leakage. - Excessive runout
→ may affect rotating stability. - Concentricity errors
→ may increase bearing wear. - Incorrect hole position
→ may create assembly problems.
Many of these issues are difficult to identify during basic dimensional inspection and may only appear after installation or operation. This is why GD&T inspection has become increasingly important in forged components, CNC machining, and precision assembly applications.
Common GD&T Features in Forged and Machined Parts
Flatness in Forged Flanges
Flatness is especially important for forged flanges and sealing surfaces.
If the surface becomes distorted during machining or heat treatment:
- Sealing pressure may become uneven
- Leakage risks may increase
- Assembly quality may become unstable
Large flanges and thin-wall structures are usually more sensitive to flatness variation.
Runout in Ring Forgings
Runout is one of the most common GD&T requirements in rotating forged parts.
Excessive runout may affect:
- Rotational balance
- Bearing performance
- Assembly alignment
- Equipment stability
This is especially important for slewing rings, bearing rings, and rotating machinery components.
Concentricity in Shafts and Bearing Seats
Concentricity is critical for shafts, bearing journals, and rotating assemblies.
Poor concentricity may lead to:
- Vibration
- Noise
- Uneven bearing wear
- Reduced service life
Stable datum control and consistent machining setup are important for improving concentricity.
Position Tolerance in Bolt Holes
Position tolerance controls the location accuracy of holes and mounting features.
Even if hole diameters are correct, inaccurate hole positions may still:
- Prevent assembly
- Increase installation difficulty
- Create alignment problems
CMM inspection is commonly used to verify hole position accuracy in large forged components.
How Forging Affects Geometric Tolerances
For forged components, geometric tolerances are often influenced before finish machining begins. In many OEM applications, machining consistency depends not only on CNC machining accuracy, but also on forging stability and heat treatment control.
Several forging-related factors may affect GD&T inspection results:
- Uneven forging allowance
→ may create unstable datum references during machining. - Heat treatment deformation
→ may affect flatness, runout, and concentricity. - Residual stress release
→ may cause dimensional movement after rough machining. - Datum inconsistency
→ may reduce machining repeatability between operations.
These issues are more common in large forged rings, shafts, flanges, and structural components where stable geometric tolerance control is critical for assembly and long-term performance.
For many OEM projects, maintaining stable geometric tolerances becomes easier when forging, heat treatment, machining, and inspection are coordinated within one manufacturing process.
Why CNC Machining Is Critical for GD&T Control
CNC machining has a direct impact on GD&T performance because geometric tolerances rely heavily on machining stability and setup consistency.
Several machining factors are especially important:
- Datum strategy
- Fixture and clamping stability
- Cutting sequence
- Setup consistency
- Machining repeatability
Even small setup variation may affect flatness, runout, concentricity, and position tolerance in forged and machined parts.
For large forged rings, shafts, and structural components, maintaining stable datum references between rough machining and finish machining helps improve dimensional stability and reduce geometric tolerance variation.
DFM Advice: Balancing GD&T and Costs
In heavy equipment manufacturing, tighter tolerances usually mean higher costs. Applying overly strict GD&T requirements “just to be safe” may increase CNC machining time, inspection difficulty, and scrap rates without improving actual performance.
A practical DFM review helps balance performance and manufacturing cost by focusing on what really matters:
- Focus on critical areas: Apply tighter tolerances only to sealing surfaces, bearing seats, and key assembly interfaces.
- Relax non-critical features: Avoid unnecessary tight tolerances on clearance or free surfaces.
- Optimize machining strategy: Choose suitable forging allowances and machining processes to improve consistency and efficiency.
In many OEM projects, early discussion about GD&T requirements and machining capability helps reduce unnecessary manufacturing cost later in production.
Common GD&T Inspection Methods
Different GD&T features usually require different inspection methods.
Common inspection methods include:

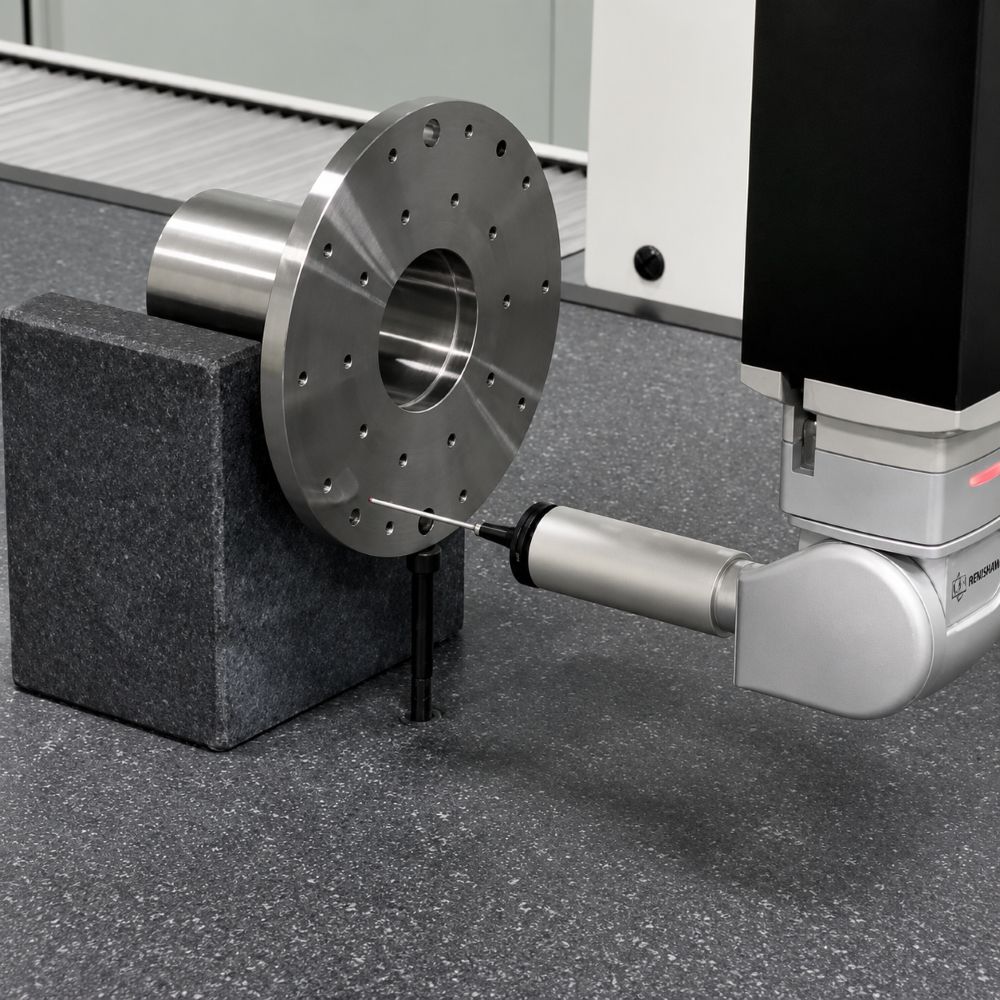

- CMM inspection for position tolerance and concentricity

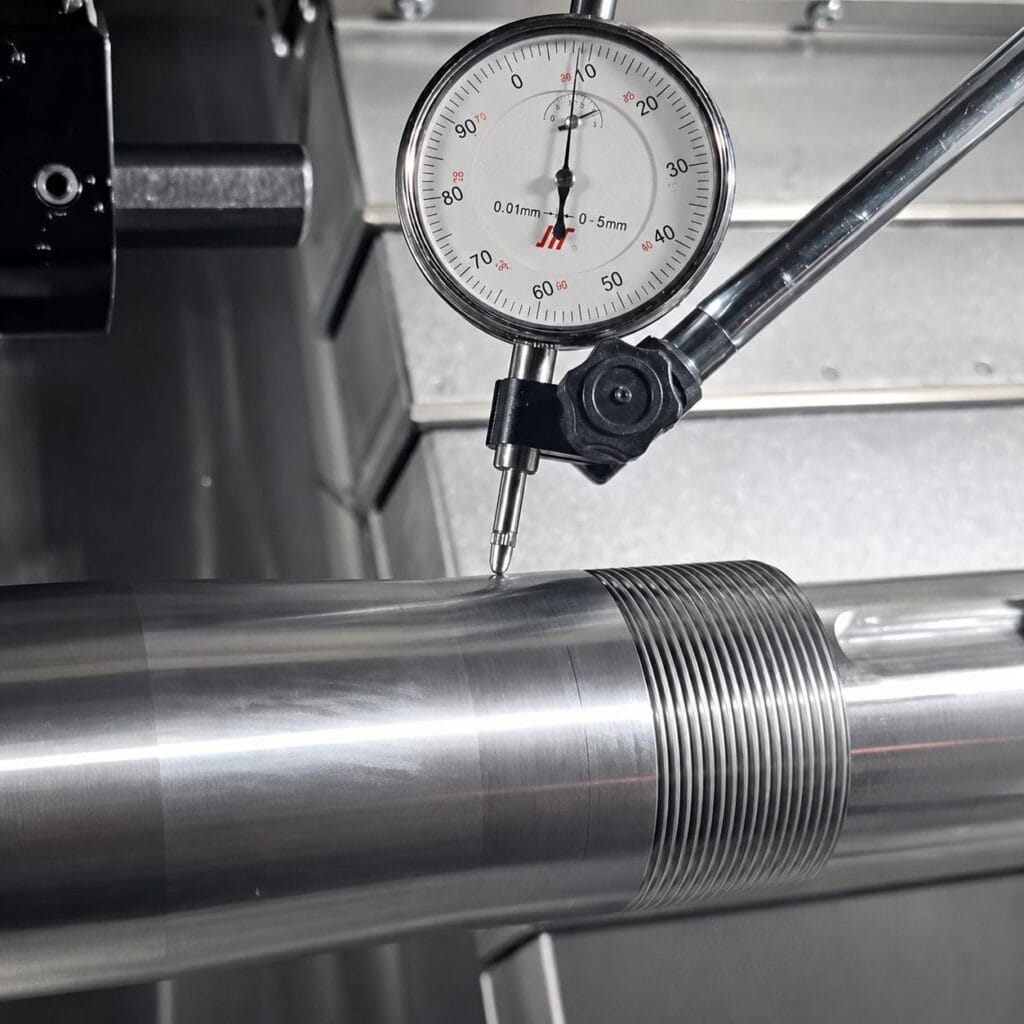

- Runout inspection using rotary fixtures and dial indicators
- Flatness inspection using surface plates or laser systems
- Profile inspection for complex machined surfaces
For large forged parts, stable support during inspection is also important because self-weight deformation may influence measurement results.
How Better Process Control Improves GD&T Stability
Improving GD&T stability usually requires better coordination across forging, machining, heat treatment, and inspection.
Several practices can help improve machining consistency:
- Maintain stable forging dimensions
- Use consistent datum references
- Control heat treatment distortion
- Optimize machining setup
- Perform intermediate inspection after key operations
In many OEM projects, solving tolerance problems early is usually easier and less expensive than correcting them later.
Conclusion
GD&T is critical for forged and machined parts, directly impacting assembly accuracy, sealing performance, and long-term equipment reliability. Achieving stable geometric tolerances requires more than just precise CNC machining—it demands strict control over forging consistency, heat treatment, and full-process inspection.
As components grow more complex, proactive tolerance planning is the best way to prevent costly rework.
