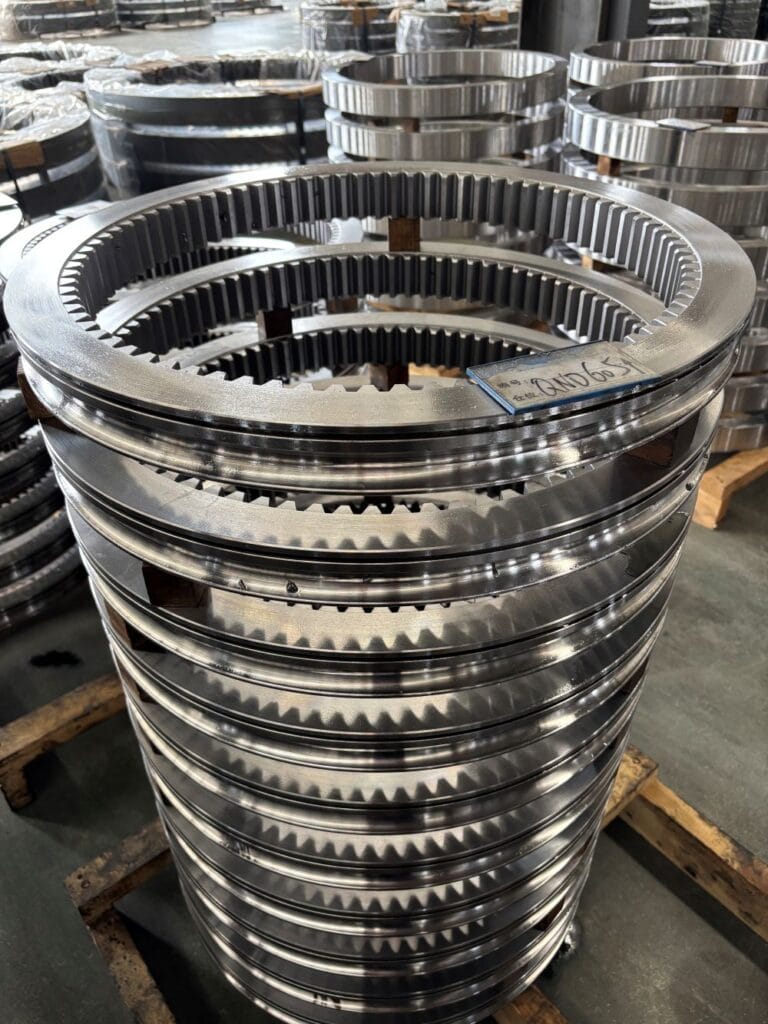

forged internal ring gear for slewing bearing applications manufactured by Weforging

large forged internal ring gears for slewing bearing manufacturing

Forged Internal Ring Gear for Slewing Bearings

Table of Contents

Forged Internal Ring Gear for Slewing Bearing

An internal ring gear is a critical component used in many heavy-duty transmission systems. In slewing bearing applications, the internal gear ring engages with drive gears to transmit torque and control rotational motion. Because these components often operate under high loads and continuous rotation, strength, durability, and dimensional accuracy are essential.

A forged internal ring gear offers significant advantages compared with cast or fabricated gears. The forging process improves material density and grain flow, resulting in higher mechanical strength and improved fatigue resistance.

What Is an Internal Ring Gear

An internal ring gear is a circular gear with teeth machined on the inner surface. It is commonly used in large transmission systems where compact and efficient torque transmission is required.

Key structural characteristics include:

Internal Gear Teeth
Teeth are located on the inner circumference, allowing engagement with drive pinions or planetary gears.
Large Diameter Structure
Internal ring gears are typically used in large rotating systems.
High Load Transmission
The gear structure distributes load efficiently during rotation.
Precision Gear Machining
Accurate tooth geometry ensures smooth engagement and stable performance.

Internal Ring Gear for Slewing Bearing Systems

In slewing bearing systems, the internal ring gear plays a central role in rotational drive mechanisms.

Typical functions include:

Torque Transmission
The slewing bearing ring gear engages with a drive pinion to transfer torque.
Controlled Rotational Motion
It enables smooth rotation of large equipment structures.
Load Distribution
The internal gear structure distributes loads across multiple teeth.

Common applications include:

Excavators
Cranes
Wind turbine yaw systems
Construction equipment
Mining machinery

Forged Internal Ring Gear Manufacturing Process

The manufacturing of a forged internal ring gear involves several coordinated production steps to ensure strength and precision.

Typical process stages include:

Hot Forging
Steel billets are heated and forged to form the ring structure while improving grain flow.
Ring Rolling
The forged ring is expanded to the required diameter and structural uniformity.
CNC Gear Machining
High-precision machines are used to cut internal gear teeth.
Heat Treatment
Quenching and tempering processes improve hardness and wear resistance.
Inspection and Quality Control
Dimensional inspection and gear accuracy testing ensure consistent quality.

Material Selection

Material selection is important for the strength and durability of an internal ring gear. Different materials are used depending on load requirements, wear resistance, and heat treatment processes.

Common materials for forged internal ring gears include:

42CrMo Alloy Steel
High strength and good fatigue resistance for heavy-duty applications.
20CrMnTi Alloy Steel
Suitable for carburized gears requiring high surface hardness.
40Cr Alloy Steel
Commonly used for medium-load gear components.

Proper material selection helps ensure reliable performance in slewing bearing ring gear systems.

Key Advantages of Forged Internal Ring Gears

Compared with cast gears, forged internal ring gears provide several important advantages.

Higher Mechanical Strength
Forging improves material density and structural integrity.
Improved Grain Structure
Optimized grain flow increases fatigue resistance.
Longer Service Life
Forged components perform better under cyclic loads.
Higher Load Capacity
Suitable for heavy-duty slewing systems.

Technical Specifications of Internal Ring Gear

Parameter	Typical Range
Outer Diameter	200 mm – 5000 mm
Module	2 – 30
Material	Alloy Steel / 42CrMo
Heat Treatment	Quenching & Tempering
Hardness	HRC 28–36 / HRC 50–60
Gear Accuracy	ISO 6–9

Applications

Large internal ring gears are widely used in many heavy industrial systems.

Typical applications include:

Construction machinery
Mining equipment
Wind power systems
Industrial gearboxes
Slewing drive systems

Why Choose Weforging

Weforging is a professional forged internal ring gear manufacturer with integrated manufacturing capabilities.

Our advantages include:

Complete forging production capacity
Precision CNC gear machining
Advanced heat treatment facilities
Strict quality inspection system
Reliable OEM batch production

Inquiry & Technical Support

Looking for a reliable supplier for custom internal ring gears?

Weforging provides:

Drawing evaluation
Material selection advice
Customized manufacturing solutions

Contact our engineering team to discuss your project requirements.
