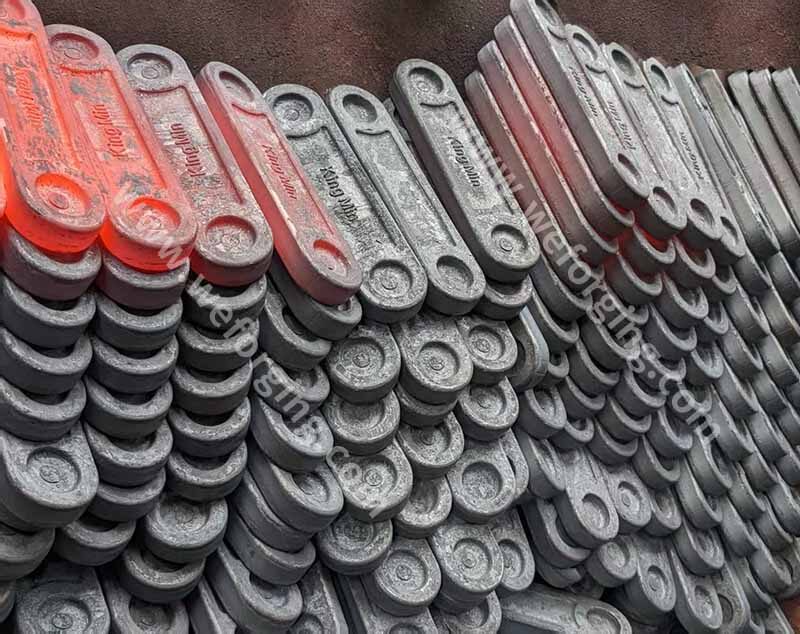

Precision Link Arm Forging
Link arm forging is an essential structural component used to transfer force and motion in hydraulic, construction, and heavy mechanical systems. It requires high strength, dimensional accuracy, and resistance to fatigue.The forging process refines the metal grain structure, improving its strength and toughness compared to cast or welded parts. Each link arm at Weforging is manufactured through a controlled forging + CNC machining + testing process to ensure consistent geometry and stable performance under continuous load.
Manufacturing Process
The link arm forging process integrates forging, machining, and inspection to achieve superior structural and dimensional quality.
Material Selection: High-strength alloy steels such as 42CrMo or 35CrMo are typically used. In lighter applications, aluminum links may be selected for weight reduction while maintaining rigidity.

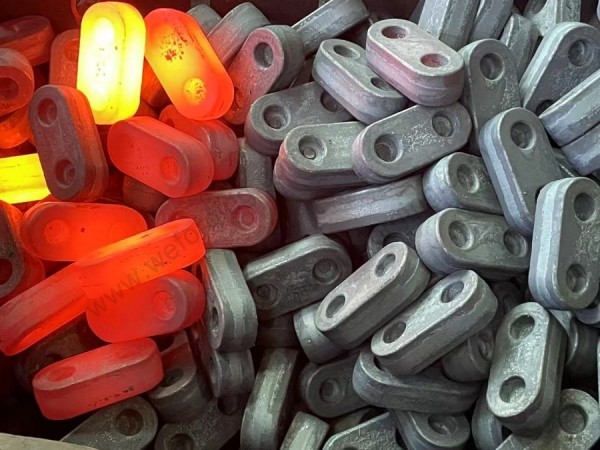

Heating & Forging: Billets are uniformly heated and forged under high pressure to align internal grain flow with the load direction. This process gives the linking arms excellent fatigue resistance and structural density.
Heat Treatment: Controlled heat treatment normalizes mechanical properties and improves hardness, impact strength, and dimensional stability.
CNC Machining: Precision machining ensures accurate hole positioning, perfect alignment, and surface finish across all assemblies.
Inspection & Testing: Each part undergoes UT, MPI, and CMM inspection to verify integrity and dimensional conformity.
This end-to-end process ensures all link arm forgings meet international standards such as ISO and DIN.
Advantages of Link Arm Forgings
Link arm forgings provide a combination of mechanical strength, fatigue resistance, and dimensional consistency unmatched by casting or welding.The forging process produces a dense and continuous grain structure that enhances toughness and stability. CNC machining ensures precision alignment of holes and surfaces, while heat treatment maintains uniform mechanical properties.Together, these factors create reliable components suitable for continuous heavy-duty operation in industrial environments.
Applications of Link Arm Forgings
Forged link arms are essential in industries where strength, fatigue resistance, and motion accuracy are critical.
Their superior mechanical properties make them suitable for the following sectors:
Hydraulic Systems: Used in connecting clevises, actuator joints, and cylinder ends.
Construction Equipment: Essential for excavators, cranes, and loaders that require precise articulation.
Automotive & Transportation: Applied in suspension links, stabilizers, and steering linkages.
Agricultural Machinery: Supports coupling and motion control in tractors and harvesters.
Heavy Industry & Mining: Utilized in high-load structural joints and mechanical arms for lifting systems.
Each forged and linked arm is engineered for consistent strength, reliability, and dimensional precision, ensuring stable performance under continuous operation.
Conclusion & Contact
Forged link arms remain a trusted choice for mechanical systems requiring precision, durability, and stability.Through advanced forging and machining processes, Weforging delivers dependable solutions that meet international standards and OEM specifications.
📩 For drawings, RFQs, or custom configurations, please contact our engineering team.
