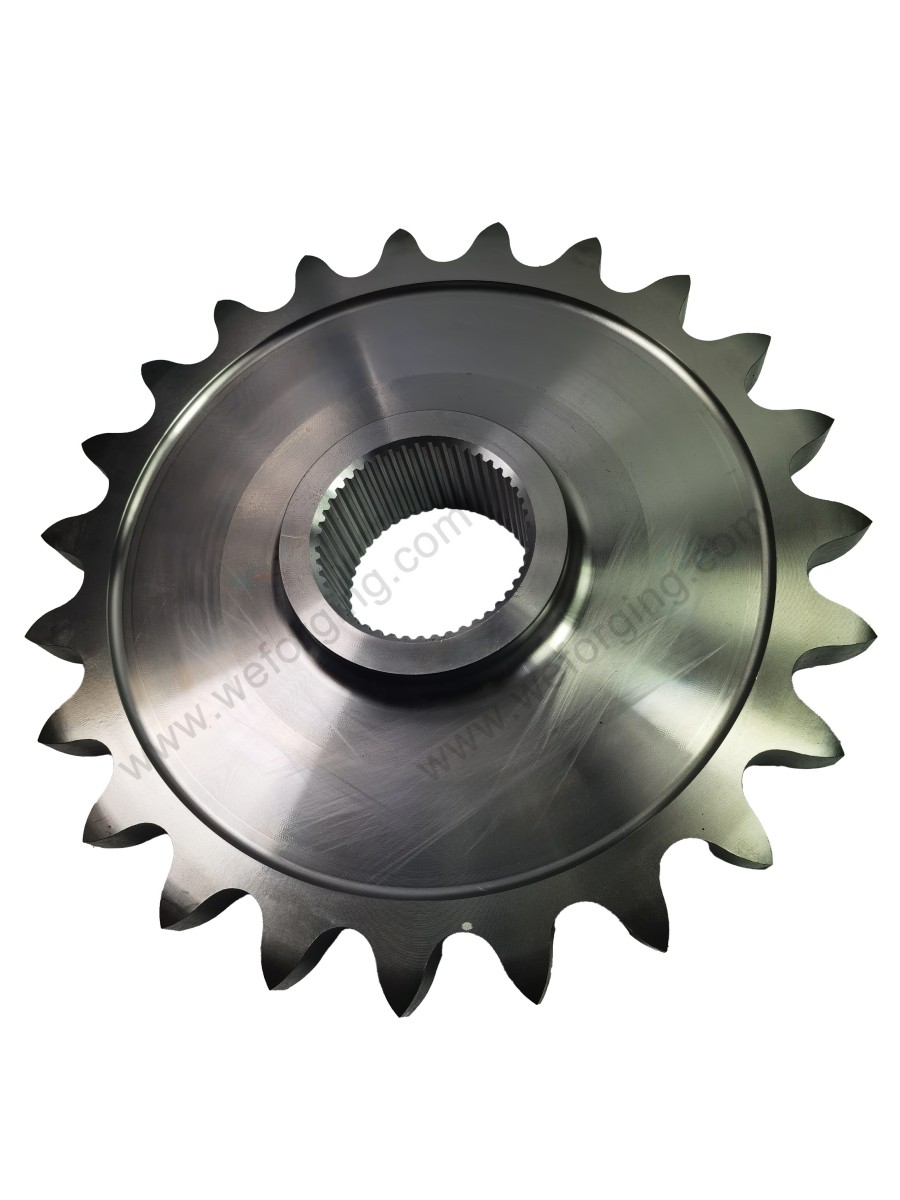

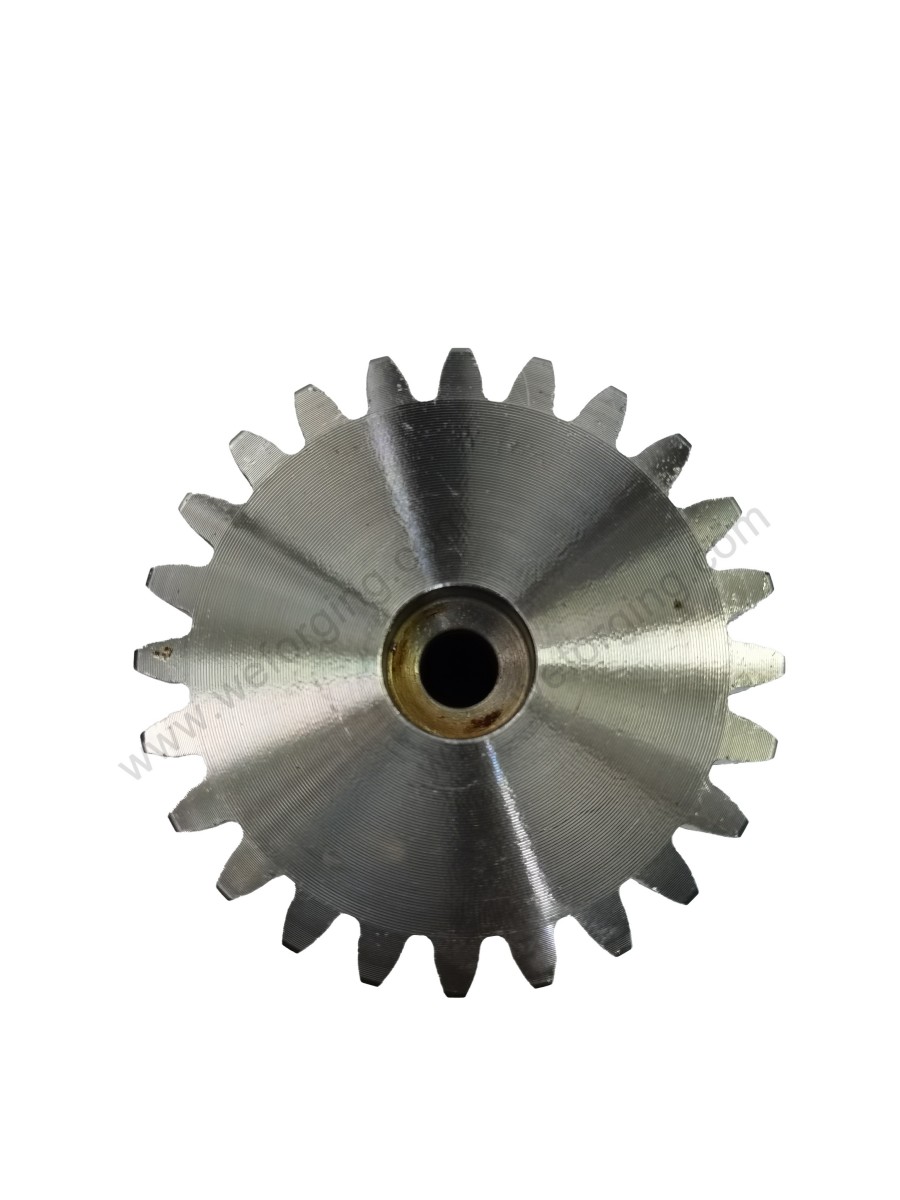

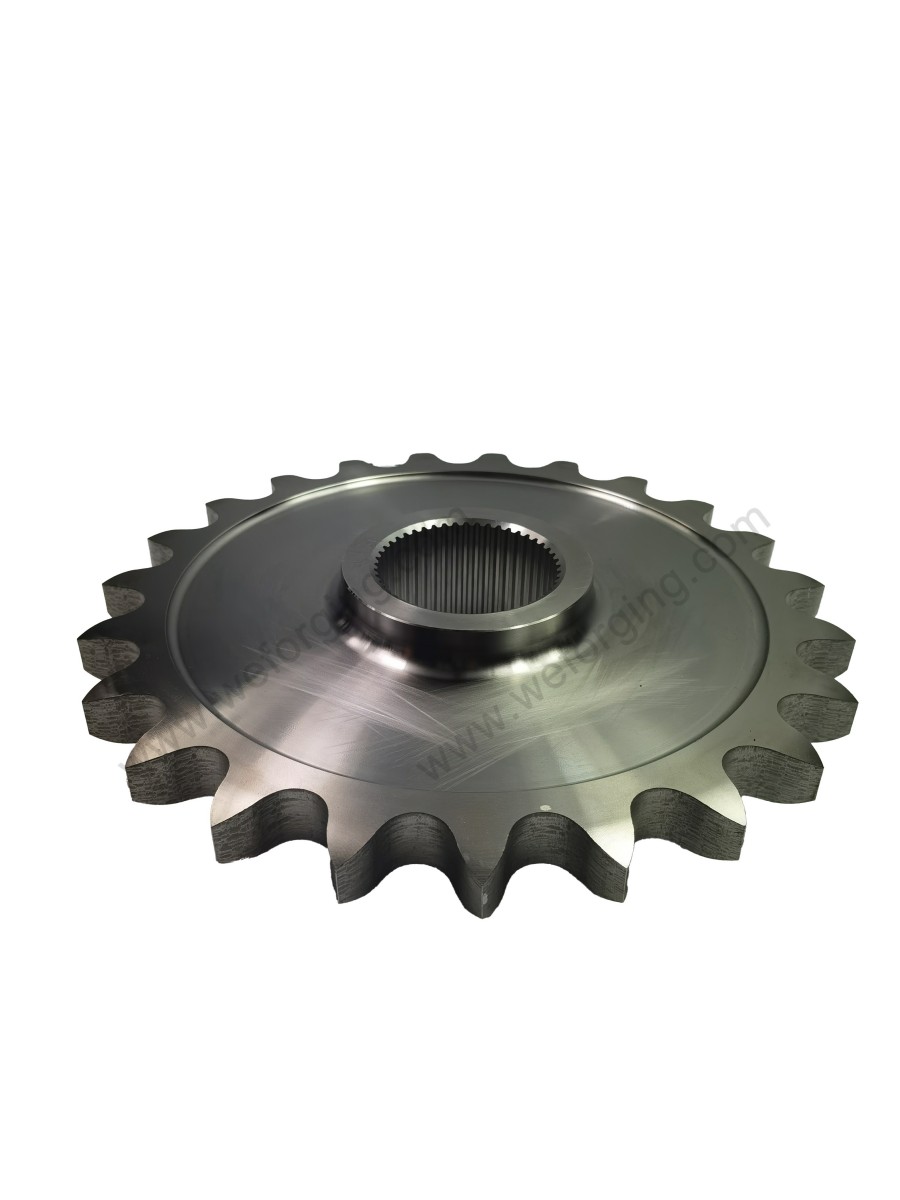

Forged Sprocket Wheel
A sprocket wheel is a precision-engineered component that transmits torque between rotating shafts through a chain system. Each tooth engages perfectly with the chain link, ensuring stable, synchronized motion and efficient power transfer.At Weforging, every forged sprocket wheel is manufactured through closed-die forging, CNC machining, and advanced heat treatment. This combination delivers superior mechanical strength, high surface accuracy, and long-term reliability under continuous operation.
Manufacturing Process
Material Selection: Alloy steel and carbon steel (42CrMo, 4140, SCM440) offer high strength and wear resistance.
Closed-Die Forging: Controlled forging refines internal grain flow for consistent density and mechanical performance.
CNC Machining: Each spline and tooth profile is machined to precise tolerance for accurate chain alignment.
Heat Treatment: Normalizing, quenching, and tempering improve hardness and ensure long service stability.
Inspection: Every sprocket undergoes dimensional, hardness, and surface quality testing to ISO 9001 and AGMA standards.
This forging + CNC + testing workflow ensures dimensional precision, reliable torque transfer, and optimized performance across heavy-duty applications.
Function in Planetary Systems
In a planetary system sprocket, the sprocket wheel connects the planetary gearbox to an external chain-driven mechanism. It enables smooth torque transmission while maintaining synchronized motion within compact power units.
The spline hub secures a stable fit with the drive shaft.
Forged teeth distribute load evenly across the chain.
Optimized geometry supports efficient energy transfer with minimal vibration.
Therefore, this refined design ensures excellent mechanical balance and operational reliability, making Weforging sprocket wheels ideal for wind turbines, tracked machinery, and industrial power systems requiring long-term precision and durability.
Product Advantages
High Strength: Forged structure provides superior fatigue and impact resistance.
Precision Fit: CNC-machined splines and hub ensure tight, accurate shaft engagement.
Smooth Transmission: Refined tooth geometry allows consistent chain movement under load.
Durable Finish: Heat-treated and ground surfaces maintain wear resistance.
Flexible Customization: Tailored dimensions, materials, and coatings per OEM specifications.
Applications
The versatility of the sprocket wheel allows it to perform reliably in various industrial and mechanical systems. From high-torque powertrains to precision planetary drives, it ensures smooth power flow and operational stability across demanding environments.
Planetary Drive and Reduction Systems: Ensures synchronized torque delivery and efficient power transfer.
Chain Drive Assemblies for Heavy Machinery: Provides reliable motion transmission for excavators, cranes, and tracked vehicles.
Industrial Conveyors and Lifting Equipment: Supports smooth, continuous movement under heavy-duty workloads.
Agricultural and Wind Power Transmission Systems: Offers durable, corrosion-resistant performance for long-term outdoor operation.
With its combination of forged strength and CNC accuracy, Weforging’s forged sprocket wheel delivers consistent, high-performance power transmission for global OEM and engineering applications.
Conclusion
Combining forged durability, CNC precision, and heat-treated performance, Weforging’s sprocket wheel ensures reliable torque transmission and long-term operation in industrial environments.
Whether as a chain drive gear or planetary system sprocket, it offers mechanical strength and operational stability that meet global OEM requirements.
