Custom Splined Shaft Manufacturer

A splined shaft is a precision transmission component used for torque transfer and mechanical connection. We manufacture custom splined shafts, forged splined shafts and flanged splined shafts for gearboxes, heavy equipment and industrial drive systems.

We work from OEM drawings to manufacture shaft components with specified spline profiles, bearing journals, heat treatment requirements and dimensional tolerances. Depending on the design and production volume, we can supply forged blanks, rough-machined shafts or finished components.

Our integrated forging, CNC machining, spline cutting and inspection capabilities help OEM buyers manage production through a single supplier, with material traceability and inspection records linked to manufacturing batches.

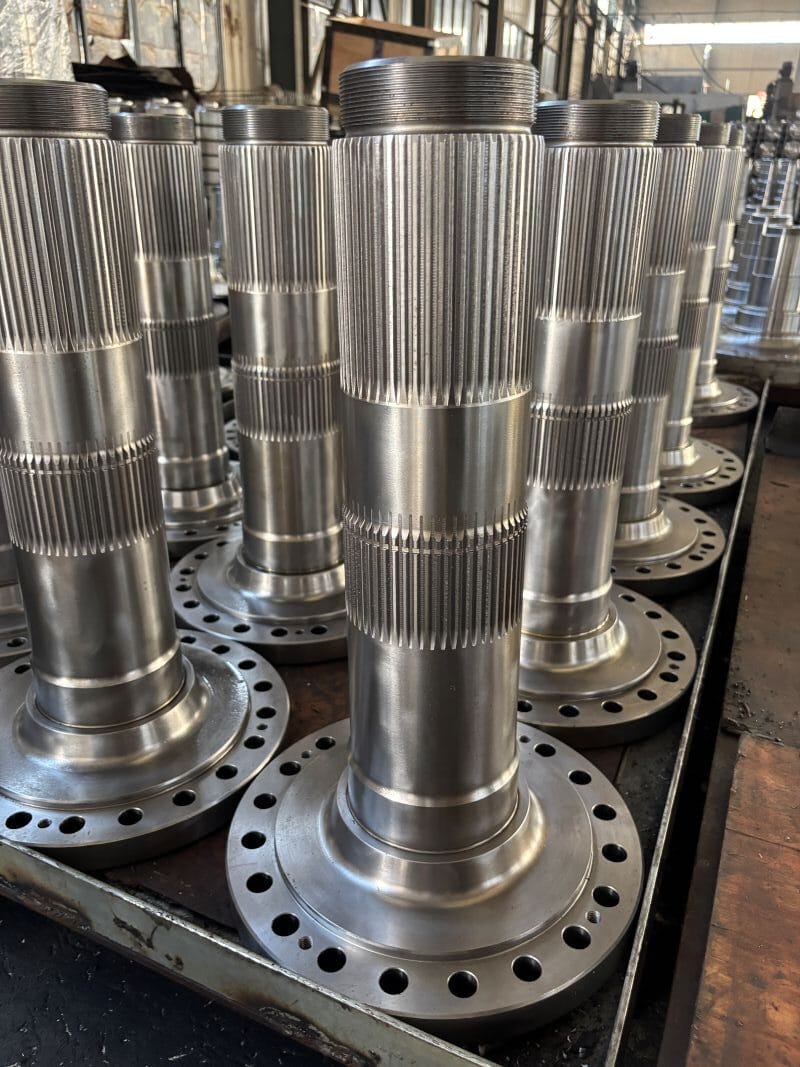

Forged splined shafts with flanges manufactured for industrial transmission systems and heavy-duty equipment

Splined Shaft Specifications

Weforging produces custom splined shafts to customer drawings rather than a fixed catalog specification. Shaft dimensions, spline geometry, material selection and inspection requirements are reviewed according to the intended application and mating components.

Specification

Manufacturing Options

Product

Custom splined shafts, forged splined shafts, flanged splined shafts

Materials

Carbon steel, alloy steel and stainless steel

Spline Configuration

External splines, custom profiles

Spline Geometry

Involute or straight-sided, subject to drawing review

Blank Manufacturing

Closed-die forging, open-die forging or suitable stock

CNC Operations

Turning, milling, drilling and finishing

Spline Machining

Spline cutting to specified geometry

Heat Treatment

Quenching and tempering, carburizing or induction hardening

Surface Protection

Protective oil, coatings or specified surface treatments

Critical Dimensions

Spline fit, shaft diameter, bearing journals, runout and straightness

Inspection

Dimensional inspection, CMM measurement and hardness testing

Delivery Condition

Forged blank, rough-machined or finished shaft

Final manufacturing methods and tolerances are confirmed after reviewing the drawing, spline standard, material requirements and production quantity.

For splined shafts with flanges, significant diameter changes or demanding load requirements, forged blanks may offer advantages in material flow and machining allowance. Weforging evaluates custom forging based on shaft geometry, material properties and production volume. For simpler designs or low-volume orders, machining from bar stock may be a more practical option.

Types of Custom Splined Shafts

Splined shafts vary in their geometry, connection method and operating loads. For OEM production, the shaft design is determined by the mating component, torque requirements, installation arrangement and available manufacturing space.

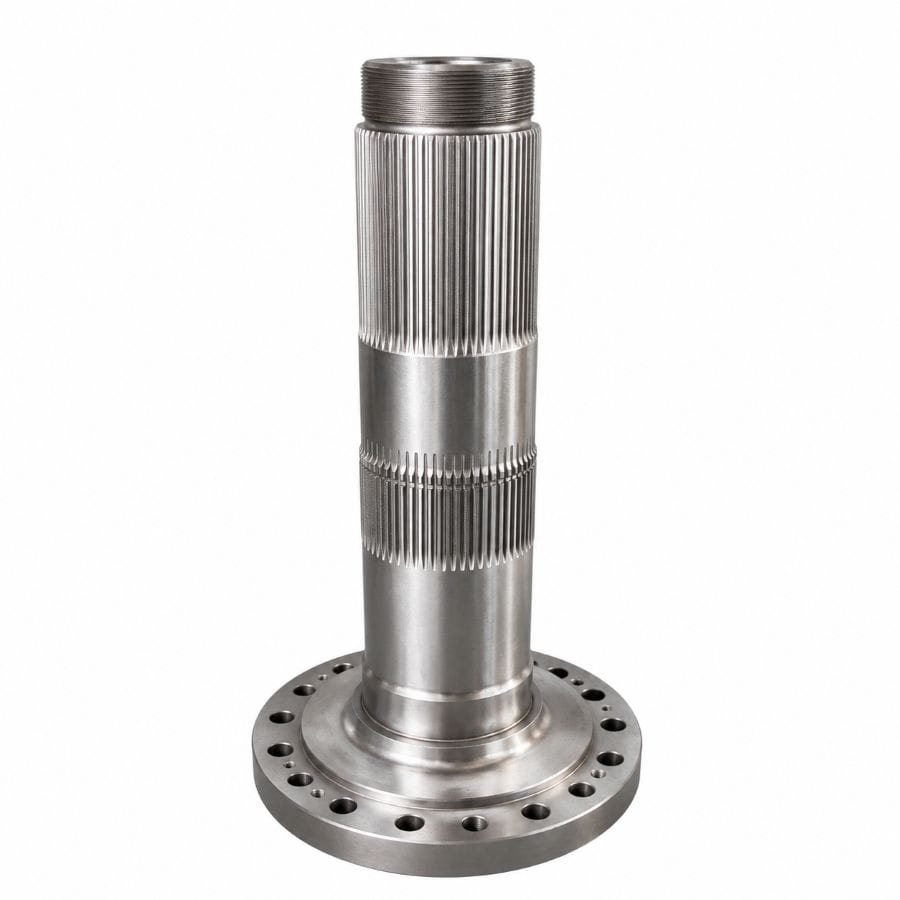

Flanged Splined Shafts

Flanged splined shafts combine a spline connection with a flange for mounting or torque transmission within an assembly. The flange, spline and bearing locations must be machined with reference to the specified drawing datums to maintain the required alignment.

Involute and Straight-Sided Splines

Involute and straight-sided splines have different tooth geometries and fit requirements. The selected profile must match the mating hub or gear. Weforging reviews the specified spline geometry and manufacturing requirements before confirming the production method.

Stepped and Custom Transmission Shafts

Custom transmission shafts may include multiple diameters, bearing seats, shoulders, threaded ends and external splines. These features require a consistent machining datum strategy, particularly when the shaft passes through several setups or heat treatment stages.

Manufacturing Capability

We provide a complete production process for forged splined shafts, including:

  • Forging for improved material structure and load capability
  • CNC machining for accurate dimensions and surface requirements
  • Spline machining for precise torque transmission
  • Heat treatment for strength and wear resistance
  • Final inspection before shipment

Our production team supports both prototype development and repeat OEM orders, helping customers reduce supplier coordination and maintain consistent quality.

Features of Our Splined Shafts

  • Custom design support based on customer drawings and specifications
  • Forged construction for applications with high torque and impact loads
  • Integrated manufacturing from forging to finished machining
  • Flexible production for small batches and volume orders
  • Quality traceability with material certificates and inspection records

Splined Shaft Applications

Weforging supplies custom splined shafts for industrial power transmission applications where torque transfer, mechanical fit and repeatable dimensional quality are important.

Application

Shaft Function

Manufacturing Considerations

Industrial Gearboxes

Torque transfer between transmission components

Spline fit, bearing alignment, runout

Construction Machinery

Drivetrain and mechanical connections

Strength, load variation, fatigue resistance

Mining Equipment

Heavy-duty power transmission

Impact loading, material properties, reliability

Agricultural Machinery

Power transmission and drive connections

Wear resistance, repeat production

Industrial Drive Assemblies

Shaft-to-hub or coupling connections

Spline engagement, alignment, fit

For flanged splined shafts, the flange mounting features and spline axis must be considered together during manufacturing. The required tolerances depend on the assembly design and operating conditions.

In industrial gearboxes, splined shafts transmit torque between gears, hubs and other rotating components. Their performance depends on spline engagement, bearing alignment and the relationship between the shaft and mating parts.

Weforging manufactures custom gears and shafts for industrial transmission applications, including components requiring forging, precision machining and dimensional inspection.

Why Choose Weforging for Custom Splined Shafts?

Weforging combines forging and CNC machining to manufacture custom shaft components from customer drawings. Our manufacturing scope covers material preparation, forging where required, machining, heat treatment coordination and final inspection.

One Supplier from Forging to Finished Machining

OEM customers can source forged blanks, rough-machined shafts or finished splined shafts according to their production needs. Managing these stages through one supplier helps reduce handoffs between separate forging and machining vendors.

Drawing-Based Manufacturing and Inspection

Production requirements are reviewed against the drawing, including spline geometry, machining datums, critical tolerances, material specifications and inspection requirements. The manufacturing plan is established around the functional features of the shaft.

Batch Consistency and Traceability

For repeat OEM orders, Weforging uses manufacturing and inspection records to support production consistency. Material identification, processing history and final inspection results can be linked to the relevant production batch.

Contact

As a custom splined shaft manufacturer, we support customers from initial drawing review to final production. Our integrated forging and machining capabilities provide a reliable supply option for transmission components.

Contact us with your drawings or specifications for technical evaluation and quotation.

Can Weforging manufacture custom splined shafts to OEM drawings?

Yes. Weforging manufactures custom splined shafts according to customer drawings, including specified spline profiles, shaft dimensions, materials, heat treatment and inspection requirements. Manufacturing feasibility is confirmed through drawing review.

What spline types can Weforging manufacture?

Weforging supports custom external spline configurations, including flanged and stepped shaft designs. Involute and straight-sided spline requirements can be evaluated against customer drawings and applicable specifications.

Are forged splined shafts suitable for heavy-duty applications?

Forged splined shafts can be suitable for heavy-duty applications when the material, forging process, heat treatment and final geometry are designed for the operating loads. The required mechanical properties must be established from the application and drawing specifications.

How are spline fit and shaft runout controlled?

Spline fit and runout are controlled through machining datum selection, suitable workholding, process planning and final inspection. Verification methods depend on the spline specification, shaft geometry and drawing tolerances.

Can Weforging supply finished splined shafts?

Yes. Weforging can supply forged blanks, rough-machined shafts or finished splined shafts, depending on the agreed production scope. Finished components can include specified machining, heat treatment and inspection operations.

What information is needed for a custom splined shaft quotation?

For an accurate quotation, please provide the shaft drawing, spline profile or standard, material grade, heat treatment requirements, critical tolerances, estimated order quantity and delivery condition. Information about the mating component is helpful when spline fit is critical.
