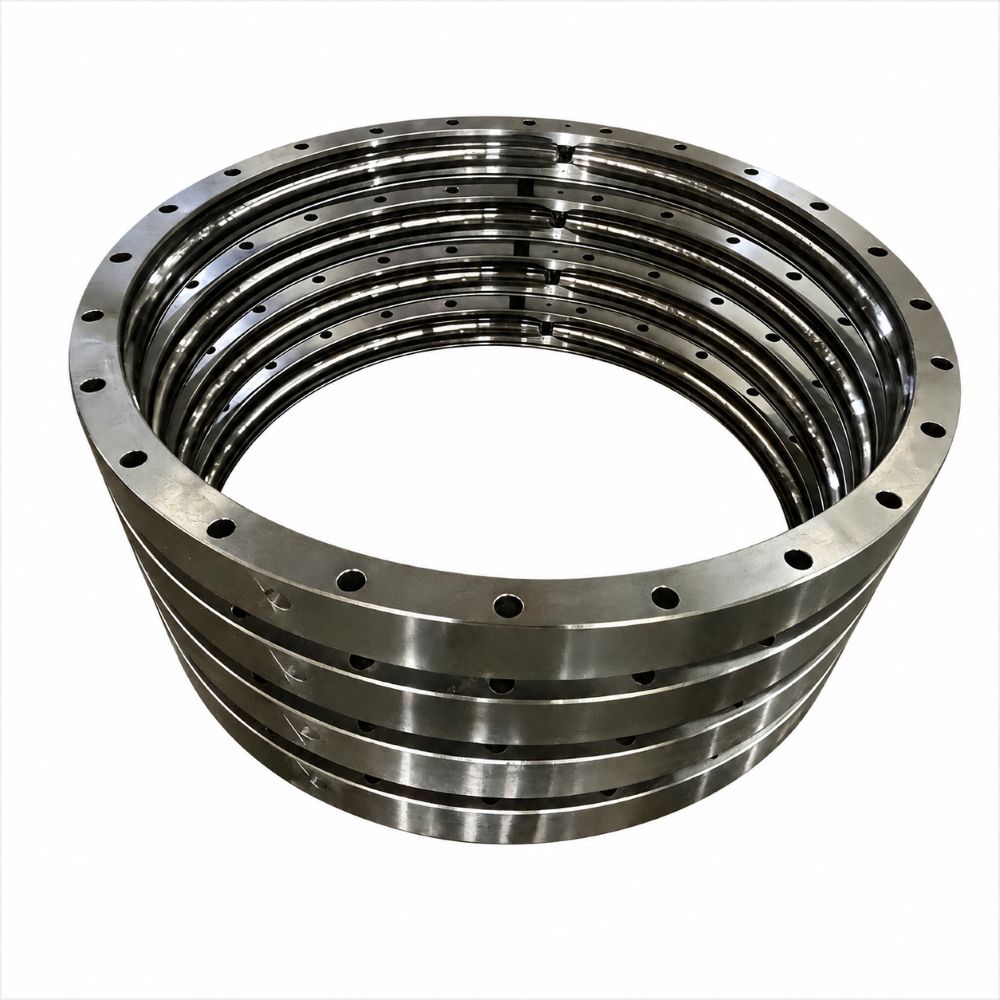

Forged Flange Ring for Heavy-Duty Industrial Applications
A forged flange ring is a key structural component used in heavy-duty industrial and mechanical systems, supporting stable load transfer, accurate alignment, and secure connections. Manufactured through advanced ring rolling forging and precision CNC machining, Weforging’s forged flange rings feature continuous grain flow, optimized material properties, and controlled geometry. As a result, each forged flange ring delivers balanced force distribution and consistent structural performance across construction machinery, industrial equipment, energy systems, and other heavy-duty mechanical assemblies.
What Is a Forged Flange Ring?
A forged flange ring is a ring-shaped steel component with an integrated flange section, typically featuring precision-machined mounting surfaces and evenly spaced bolt holes. This structural design allows the component to serve both as a load-supporting ring and a reliable connection interface within mechanical assemblies.
The integrated flange supports accurate positioning and efficient assembly, while the forged steel structure contributes to stable mechanical behavior. When manufactured through ring rolling forging, forged flange rings achieve a seamless structure with uniform material distribution around the circumference, supporting consistent performance across a wide range of industrial applications.
Manufacturing Process: Ring Rolling Forging + CNC Machining
Material Preparation
Production starts with selected carbon steel or alloy steel billets based on application requirements and relevant standards.Ring Rolling Forging
The heated billet is formed into a ring blank and expanded through ring rolling forging with controlled radial and axial deformation. This process creates continuous circumferential grain flow and a seamless structure.Heat Treatment (Optional)
Normalizing or quenching and tempering may be applied to achieve balanced mechanical properties and dimensional stability.CNC Machining
CNC machining is used to finish flange faces, inner and outer diameters, bolt hole patterns, and other functional surfaces to specified tolerances.Inspection and Delivery
Dimensional inspection and visual checks are performed before surface protection, packaging, and delivery.
Material Options and Custom Specifications
Weforging produces forged flange rings using carbon steel and alloy steel grades commonly specified for industrial structural components. Material selection is based on load conditions, assembly requirements, and service environments, while maintaining compatibility with internationally recognized standards.
Typical material examples include:
Carbon Steel: ASTM A105, ASTM A350 LF2, EN C45
Alloy Steel: ASTM A182 F11 / F22, AISI 4140 / 4340, EN 42CrMo4
Low-Alloy Structural Steel: DIN 1.7225, EN 1.7225
Custom specifications may include outer and inner diameters, flange thickness, bolt hole patterns, heat treatment condition, and machining tolerances. Products can be supplied as forged blanks, semi-finished components, or fully CNC-machined parts according to drawings or samples.
Structural and Performance Characteristics
Supported by a ring rolled forged structure and precision-controlled machining, forged flange rings deliver reliable structural performance across industrial applications. Continuous grain flow promotes even load distribution, while accurate geometry supports consistent assembly and alignment.
Together, these features make forged flange rings well suited for mechanical systems that prioritize structural integrity, dimensional accuracy, and dependable long-term operation.
Typical Applications of Forged Flange Rings
Forged flange rings are widely used in:
Construction machinery structural assemblies
Industrial equipment mounting and support systems
Energy and power equipment interfaces
Heavy-duty mechanical connection structures
They serve as load-bearing, positioning, or connection components within complex assemblies.
Why Choose Weforging
Integrated Manufacturing
Forging, CNC machining, heat treatment, and inspection in one coordinated production system.OEM & Custom Support
Experience translating drawings and technical requirements into practical manufacturing solutions.Stable Production & Communication
Flexible customization, consistent batch production, and clear technical coordination throughout each project.Industrial Application Focus
Supplying forged and machined components for construction machinery, industrial equipment, and heavy-duty applications.
Contact Us
Weforging’s forged flange rings are designed for industrial applications that value structural stability, dimensional accuracy, and consistent performance. Through ring rolling forging, precision CNC machining, and flexible customization, we support a wide range of OEM and project-based requirements.
If you are sourcing forged flange rings or developing a custom forged steel ring, feel free to share your drawings or technical specifications with our team. We are ready to support your project with suitable materials, processes, and manufacturing solutions.
