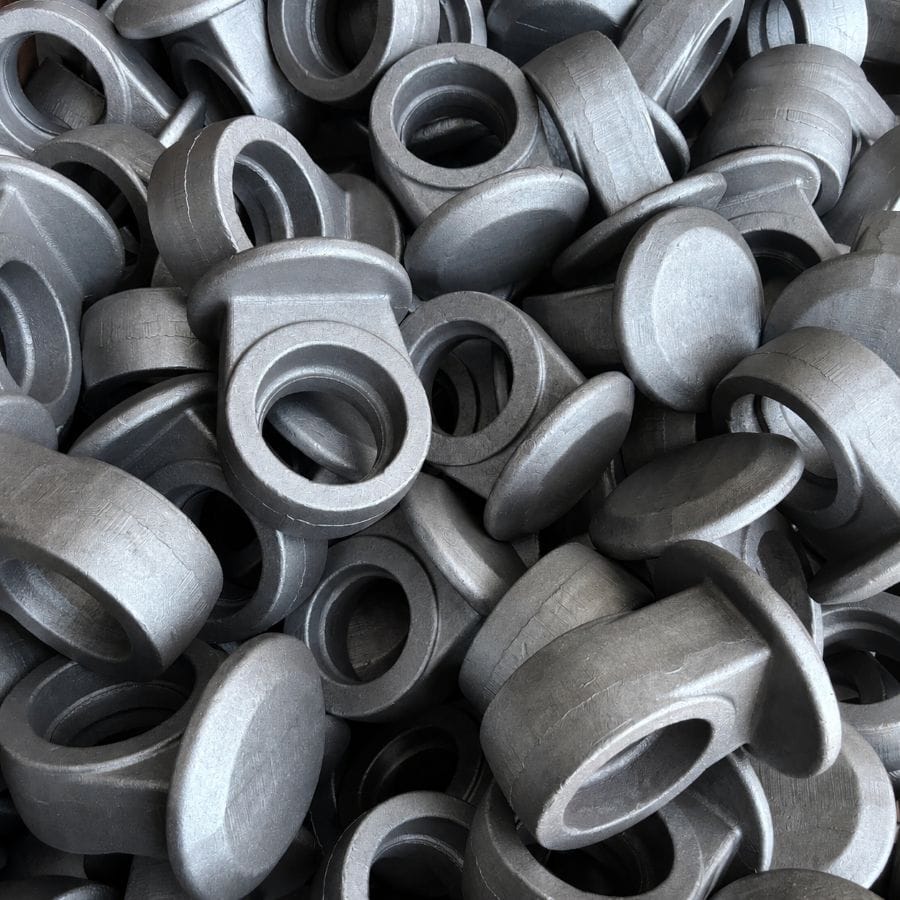

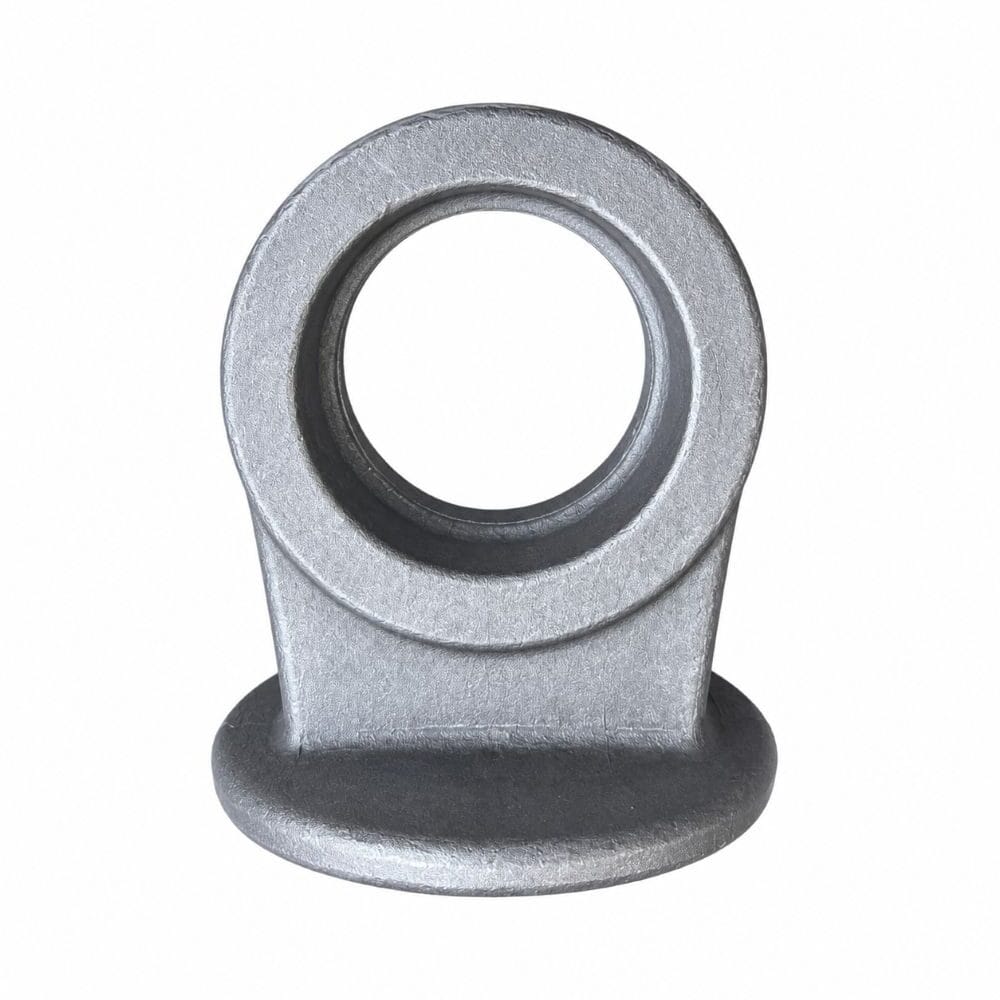

Forged Hydraulic Cylinder Rod Eye Components
Weforging provides custom hydraulic cylinder rod eye components for OEM hydraulic cylinder manufacturers and industrial equipment suppliers. Manufactured through closed-die forging, CNC machining and heat treatment, our forged rod eyes deliver excellent strength, fatigue resistance and dimensional accuracy for demanding applications.
With integrated forging and machining capabilities, we support customers from prototype development to batch production, providing reliable hydraulic components based on drawings, specifications and performance requirements.
Hydraulic Cylinder Rod Eye Specifications
| Item | Specification |
|---|---|
| Product Name | Hydraulic Cylinder Rod Eye / Eye End |
| Manufacturing Process | Closed Die Forging + CNC Machining |
| Material Options | 42CrMo, 4140, C45, Customized Steel Grades |
| Forging Weight | 0.5–50 kg (Customized) |
| Machining Process | Turning, Milling, Boring, Drilling |
| Heat Treatment | Quenching & Tempering, Induction Hardening |
| Surface Treatment | Dacromet, Painting, Customized Coating |
| Tolerance | According to Customer Drawings |
| Inspection Methods | CMM Measurement, Hardness Test, UT/MT Inspection |
| Production Type | Prototype, Small Batch and Mass Production |
| Application | Hydraulic Cylinders, Construction Equipment, Industrial Machinery |
Manufacturing Process
Our forged hydraulic cylinder rod eyes are produced through a controlled manufacturing process:
Steel Material → Closed Die Forging → Heat Treatment → CNC Machining → Surface Treatment → Final Inspection
The forging process improves the internal structure and strength of the component, while CNC machining ensures precise dimensions for assembly requirements. Heat treatment options are available to achieve the required hardness, toughness and fatigue performance for different operating environments.
By combining forging, machining and inspection capabilities in one production system, Weforging helps customers reduce supplier coordination and maintain consistent component quality.
Applications of Hydraulic Cylinder Rod Eyes
Hydraulic cylinder rod eyes are widely used in equipment where reliable mechanical connection and repeated load performance are required.
Typical applications include:
- Construction machinery hydraulic systems
- Agricultural machinery
- Mining equipment
- Industrial hydraulic cylinders
- Custom mechanical equipment
These components are designed for applications requiring strong pin connections, high load resistance and long service life.
Quality Inspection & Traceability
To meet OEM quality requirements, each production batch is supported by inspection records and process traceability.
Our inspection capabilities include:
- CMM dimensional measurement
- Material composition verification
- Hardness testing
- Ultrasonic testing (UT)
- Magnetic particle testing (MT)
- Final dimensional inspection
Inspection data and quality reports can be provided according to customer requirements.
Contact
Send us your drawings, specifications or existing samples. Our engineering team can support your project with forging solutions, CNC machining recommendations and quality requirements.
With integrated forging, machining and inspection capabilities, Weforging provides reliable hydraulic cylinder rod eyes for OEM equipment manufacturers.
What is a hydraulic cylinder rod eye?
Why are hydraulic cylinder rod eyes made by forging?
What materials are commonly used for hydraulic cylinder rod eyes?
