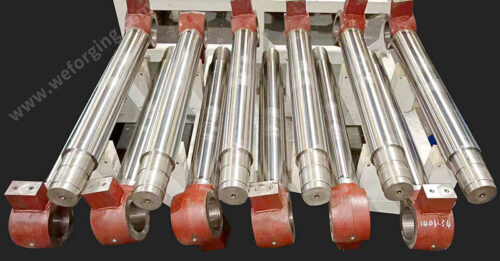

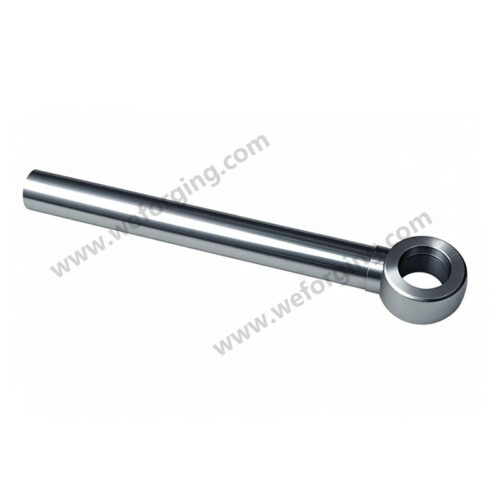

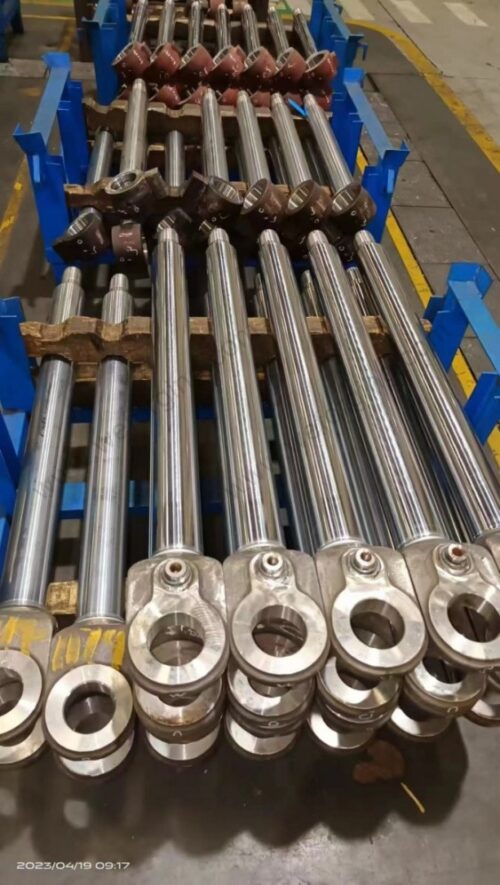

Precision CNC-Machined Hydraulic Cylinder Piston Rod
The hydraulic cylinder piston rod is a vital element in hydraulic systems, responsible for converting hydraulic energy into precise linear motion. It connects the piston to the external mechanical structure, ensuring smooth load transfer and stable operation. Manufactured from premium alloy or carbon steel, each rod undergoes forging, CNC machining, and surface hardening to achieve excellent fatigue resistance, dimensional stability, and corrosion protection.
Manufacturing Process
Material Selection: High-strength steels such as 42CrMo, 4140, or 20MnV are selected for their tensile strength and toughness.
Closed-Die Forging: Heated billets are forged under controlled pressure, refining the grain flow and improving density.
Heat Treatment: Quenching and tempering balance hardness and ductility for reliable mechanical performance.
CNC Machining: Precision turning, grinding, and threading ensure perfect straightness and surface quality.
Surface Treatment: Hard chrome plating, induction hardening, or nickel coating enhances wear and corrosion resistance.
Inspection: Each rod undergoes ultrasonic, hardness, and dimensional inspection under ISO 9001:2015 standards.
Product Advantages
Forged and machined hydraulic cylinder piston rods deliver superior strength, precise geometry, and excellent surface finish. The forging process refines internal structure and eliminates potential weak zones, ensuring durability under cyclic loads. Surface finishing reduces friction and improves seal performance, while uniform hardness after heat treatment enhances wear resistance and long-term reliability.
Applications
Construction Machinery: Excavators, cranes, and loaders for lifting and steering systems.
Industrial Equipment: Hydraulic presses, forming machines, and automation lines.
Agricultural & Forestry Machinery: Harvesters and loaders requiring reliable motion control.
Mining and Energy: Drilling rigs and heavy hydraulic tools.
Marine Engineering: Deck equipment and hydraulic stabilizers requiring corrosion resistance.
Quality & Control
Weforging implements a forging + CNC + testing dual-control system, ensuring every piston rod meets dimensional and metallurgical standards. Each batch is traceable, tested, and certified according to ISO 9001:2015 requirements, ensuring consistent performance and durability in global OEM applications.
Conclusion
The hydraulic cylinder piston rod combines advanced forging precision and machining control to ensure reliable performance under extreme conditions. With high strength, fatigue resistance, and corrosion protection, it serves as the foundation of modern hydraulic systems worldwide.
