CNC Surface Finish Guide: Ra Values, Standards and Applications
CNC surface finish plays a critical role in the performance, reliability, and service life of machined components. In industries such as mining equipment, hydraulic systems, industrial gearboxes, agricultural machinery, and heavy equipment manufacturing, surface finish requirements are often specified directly on engineering drawings.
A proper surface finish improves sealing performance, reduces friction and wear, enhances fatigue resistance, and ensures stable assembly fit. At the same time, achieving a lower surface roughness usually requires additional machining operations and higher manufacturing costs.
This guide explains common Ra values, surface finish standards, machining capabilities, inspection methods, and how surface finish affects CNC machined parts in real industrial applications.

What Is CNC Surface Finish?
CNC surface finish refers to the texture and quality of a machined surface after manufacturing. Even when a component appears smooth to the naked eye, microscopic peaks and valleys remain on the surface.
These surface irregularities are created during machining operations such as:
- CNC turning
- CNC milling
- Grinding
- Honing
- Lapping
The most common parameter used to evaluate surface finish is surface roughness Ra.
Several factors influence the final surface finish of a machined component:
- Cutting speed
- Feed rate
- Tool geometry
- Tool wear
- Machine rigidity
- Material hardness
- Coolant stability
A stable machining process helps maintain consistent surface finish throughout production batches.
Surface Finish vs Surface Roughness
Although the two terms are often used interchangeably, they represent different concepts.
| Item | Surface Roughness | Surface Finish |
|---|---|---|
| Definition | Microscopic texture of a surface | Overall surface quality |
| Measurement | Ra, Rz, Rt values | Includes roughness, waviness and lay |
| Typical Use | Inspection and quality control | Engineering specifications |
| Drawing Requirement | Roughness parameter | Complete surface requirement |
Surface roughness is only one component of surface finish. Surface finish also includes waviness, texture direction, and other characteristics that influence functional performance.
For most CNC machined components, engineering drawings specify an Ra value to define the required surface finish level.
Common Ra Values and Their Applications
Different components require different surface finish levels depending on their function.
| Ra Value | Typical Surface Quality | Common Applications |
|---|---|---|
| Ra 6.3 μm | Rough finish | Structural parts, brackets |
| Ra 3.2 μm | Standard finish | General CNC machined parts |
| Ra 1.6 μm | Fine finish | Gear blanks, shaft journals |
| Ra 0.8 μm | Precision finish | Bearing seats, hydraulic components |
| Ra 0.4 μm | High precision finish | Sealing surfaces |
| Ra 0.2 μm | Ultra-fine finish | Precision hydraulic systems |
For most industrial applications, Ra 3.2 μm offers a practical balance between manufacturing cost and functional performance.
CNC Surface Finish Chart
The achievable surface finish depends largely on the machining process used.
| Manufacturing Process | Typical Ra Range |
|---|---|
| Rough Turning | 6.3 – 12.5 μm |
| Finish Turning | 1.6 – 3.2 μm |
| Milling | 1.6 – 6.3 μm |
| Surface Grinding | 0.4 – 1.6 μm |
| Cylindrical Grinding | 0.2 – 0.8 μm |
| Honing | 0.1 – 0.8 μm |
| Lapping | 0.05 – 0.4 μm |
As the required Ra value decreases, machining complexity, inspection requirements, and production costs generally increase.
For example, achieving Ra 0.8 μm may require precision grinding, while Ra 0.4 μm or below often requires honing or lapping operations.
Surface Finish Symbols on Engineering Drawings
Surface finish requirements are commonly indicated using ISO 1302 symbols.
These symbols communicate important information such as:
- Required Ra value
- Material removal requirements
- Surface lay direction
- Additional machining instructions
Examples include:
| Drawing Requirement | Typical Application |
|---|---|
| Ra 3.2 | General machining surfaces |
| Ra 1.6 | Precision fits |
| Ra 0.8 | Bearing seats |
| Ra 0.4 | Hydraulic sealing surfaces |
Understanding surface finish symbols helps manufacturers select the appropriate machining and inspection methods before production begins.
What Surface Finish Can Different Machining Processes Achieve?
Different machining processes leave different surface textures. The achievable Ra value depends on the cutting method, tooling condition, machine stability, and material being machined.
In most cases, lower surface roughness requires additional finishing operations, which increases machining time and manufacturing cost.
CNC Turning
CNC turning is commonly used for shafts, sleeves, flanges, and bearing housings. Under normal machining conditions, turning can typically achieve a surface finish between Ra 1.6 and 6.3 μm.
For many general-purpose machined parts, a finish of Ra 3.2 μm is sufficient without additional secondary processing.
CNC Milling
Milling is widely used for structural components, equipment housings, and gear blanks. Depending on the cutter geometry and machining parameters, surface finishes between Ra 1.6 and 3.2 μm are commonly achieved.
Milled surfaces often provide a good balance between machining efficiency and dimensional accuracy.
Grinding
When tighter tolerances and smoother surfaces are required, grinding is often used after CNC machining. Typical grinding operations can achieve Ra 0.4 to 1.6 μm, making them suitable for bearing seats, shaft journals, and precision fit surfaces.
Many rotating components rely on grinding to improve both surface quality and assembly performance.
Honing and Lapping
Honing and lapping are used when extremely smooth surfaces are required. These finishing processes can achieve surface finishes as low as Ra 0.05 to 0.8 μm.
Typical applications include hydraulic cylinders, sealing surfaces, precision valve components, and other parts where leakage control or low friction is critical.
Key Takeaway
Lower Ra values do not always mean better performance. The appropriate surface finish should be selected according to the component’s function, drawing requirements, and operating conditions. For many industrial components, Ra 1.6–3.2 μm already provides an effective balance between performance and manufacturing cost.
How Surface Finish Affects Part Performance
Surface finish affects more than appearance. It plays an important role in sealing reliability, wear resistance, fatigue life, and assembly performance.
Sealing Performance
- Smoother sealing surfaces help reduce fluid and gas leakage.
- Excessive roughness can create microscopic leakage paths, especially in hydraulic and pneumatic systems.
- Common applications include hydraulic cylinders, valve seats, and sealing faces.
Wear Resistance
- Surface finish influences friction between mating components.
- A rough surface may accelerate wear and shorten component life.
- This is particularly important for bearing seats, shaft journals, and gear contact surfaces.
Fatigue Resistance
- Surface defects and machining marks can become stress concentration points.
- Under repeated loading, these areas may initiate fatigue cracks.
- Critical components such as forged shafts, gear blanks, and heavy-duty rotating parts often require tighter surface finish control.
Assembly Accuracy
- Consistent surface finish helps improve fit and assembly stability.
- Poor surface quality may lead to vibration, uneven loading, and premature wear.
- This is especially important for bearing housings, shaft fits, and precision-machined assemblies.
How Surface Finish Is Measured
Surface finish inspection is an important part of quality control.

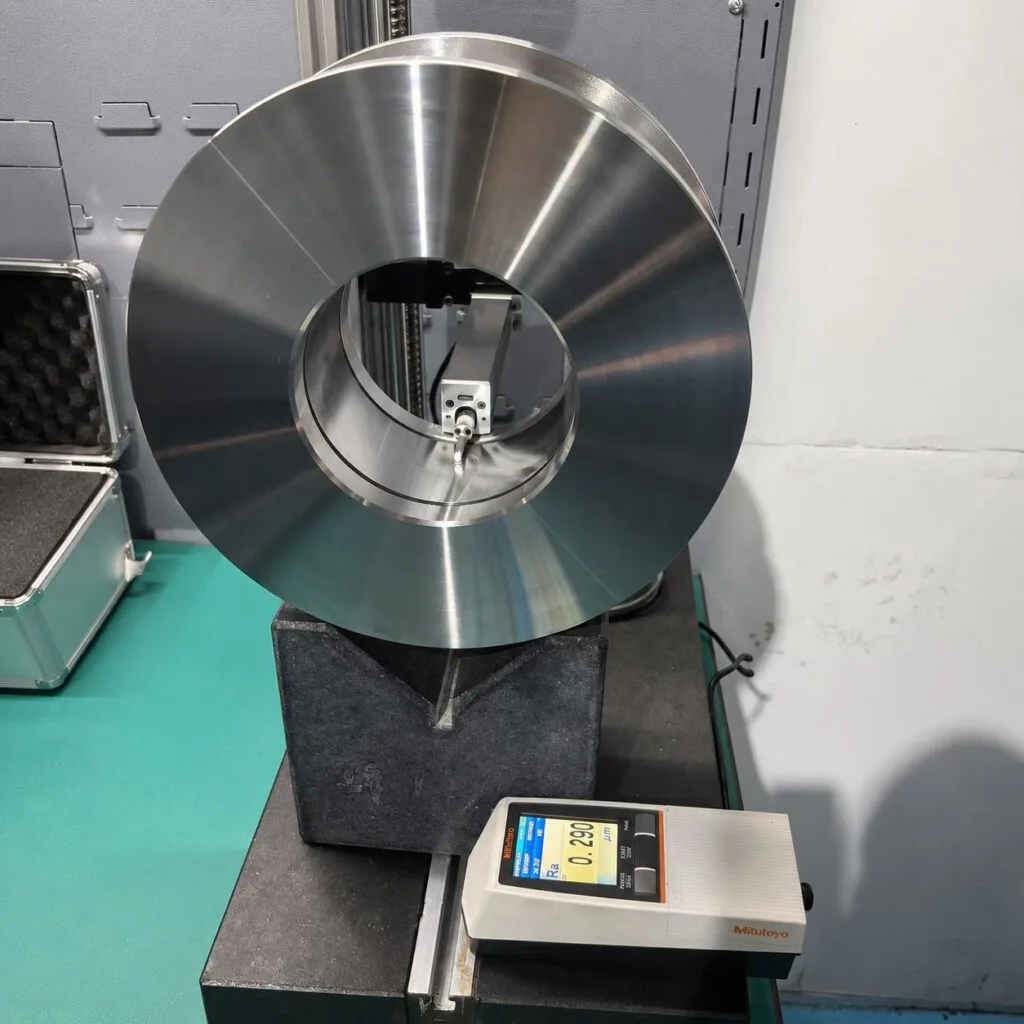

Modern manufacturers typically use contact-type profilometers to measure Ra values.
Common equipment includes:
- Mitutoyo Surface Roughness Testers
- Taylor Hobson Profilometers
- Portable Surface Measurement Instruments
A typical inspection procedure includes:
- Surface cleaning
- Instrument calibration
- Multiple measurement locations
- Data recording
- Inspection report generation
Compared with visual inspection, instrument-based measurement provides more reliable and repeatable results.

Surface Finish Requirements for Forged and CNC Machined Parts
Different forged and machined components require different surface finish levels.
| Component Type | Typical Ra Requirement |
|---|---|
| Forged Sleeves | Ra 1.6 – 3.2 μm |
| Shaft Journals | Ra 0.8 – 1.6 μm |
| Bearing Seats | Ra 0.4 – 0.8 μm |
| Hydraulic Surfaces | Ra 0.2 – 0.8 μm |
| Gear Blank Faces | Ra 1.6 – 3.2 μm |
| Precision Rotating Components | Ra 0.4 – 1.6 μm |
For OEM applications, surface finish verification is often included as part of the final inspection process.
Why Surface Finish Control Matters in OEM Manufacturing
CNC surface finish is more than a drawing specification. It directly influences sealing performance, wear resistance, fatigue life, and assembly reliability.
Choosing the appropriate Ra value helps manufacturers achieve the right balance between functional performance and production cost. By combining proper machining processes with reliable inspection methods, manufacturers can ensure consistent quality across every production batch.
For forged and CNC machined components, effective surface finish control remains an essential part of long-term product reliability and OEM quality assurance.
Conclusion
Surface roughness is more than a machining specification. It directly affects sealing performance, wear resistance, fatigue life, and assembly stability in machined components.
Different applications require different Ra values, and achieving stable surface finish often depends on the right machining process, equipment, and inspection method. From CNC turning and grinding to honing and roughness measurement, every step influences final component quality.
For OEM machined parts, stable surface roughness control helps improve long-term reliability and production consistency.
